Blue Sea Systems

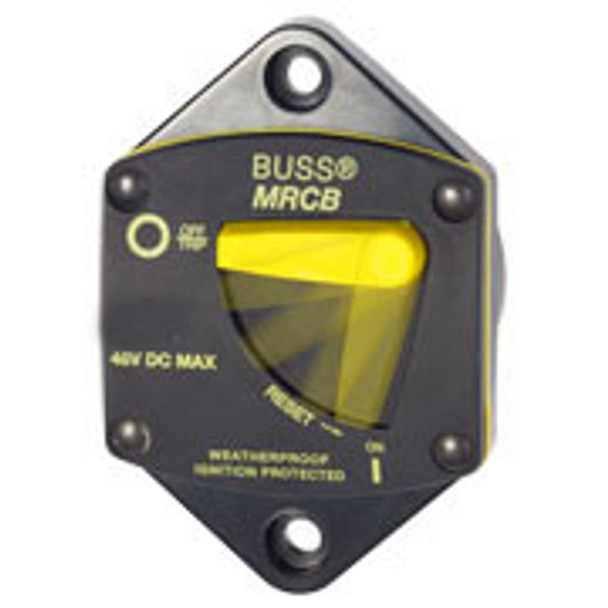

Blue Sea Systems 187-Series Circuit Breaker
(No reviews yet)
Write a Review
- SKU:
- 7036
- MPN:
- 7036 7038 7039 7040 7041 7042 7043 7046 7047
- Weight:
- 1.00 LBS
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
Blue Sea Systems 187-Series Circuit Breaker
Features:
- Combines switching and circuit protection into a single device
- Clear, single lever operation
- "Trip Free" design cannot be held "ON" during fault current condition
- Waterproof
- Recessed mounting holes for clean appearance
- Large Clearance around terminal studs accept heavy gauge wire lugs
- Robust 5/16 M8 terminals provide high torque connections
- Large lever with vertical/horizontal orientation provides indication of trip status
- Ignition protected - Safe for installation aboard gasoline powered boats, however, do not use as a switch where high inrush currents are expected.
Specifications:
- Maximum Voltage Rating: 48 Volts DC
- Mounting: Panel Mount
- Circuit Breaker Type: Thermally responsive Bi-metal blade
- Terminal Stud Torque: 75 in-lb (8.47 Nm)
- Interrupt Capacity: 5,000 A@12V DC, 3,000A@24V DC, 1,500A@42V DC
- Minimum Operating Temperature: -40 degrees C
- Maximum Operating Temperature: 85 degrees C
- Case Material: Thermoset Polyester
- Circuit Breaker Class: Type III - switchable/manual reset - trip free
- Mounting Hole: Accept #10 (M5) Screw
- Terminal Stud Size: 5/16" - 18
- CE Marked
- Meets SAE J1171 external ignition protection requirements
- IP66—withstands water from heavy seas
