Blue Sea Systems

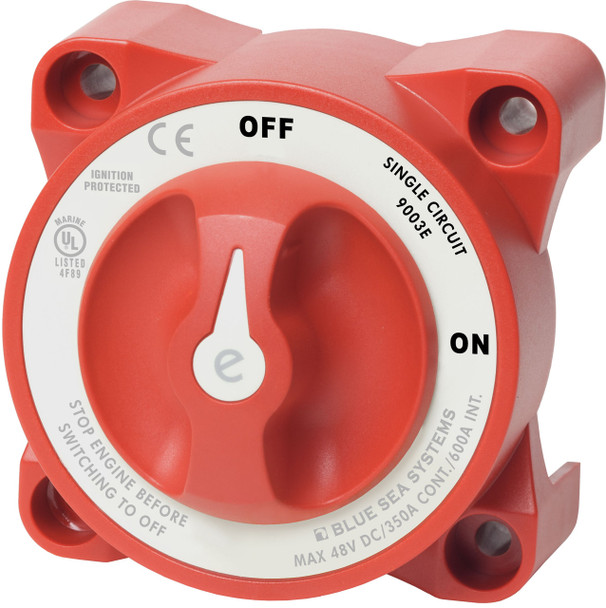

Blue Sea Systems e-Series Battery Switch Single Circuit ON/OFF
(No reviews yet)
Write a Review
- SKU:
- 9003E
- MPN:
- 9003E
- Weight:
- 2.00 LBS
- Shipping:
- Calculated at Checkout
Frequently bought together:
Description
Blue Sea Systems e-Series Battery Switch Single Circuit ON/OFF
Switches a single battery to a single load group
Features:
- Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
Specifications:
- Cranking Rate: 30 sec.: 1,200 Amps
- Cranking Rate: 10 sec.: 2,000 Amps
- Intermittent Rating: 5 min. : 600 Amps
- Continuous Rating: 350 Amps
- Maximum Voltage Rating: 48 Volts DC
- Terminal Stud Size: 3/8-16 (M10)
- Terminal Stud Torque: 140 in-lb (15.82 Nm) max.
- Mounting Holes: Accept 1/4" (M6) Screw
- Cable Size to Meet Ratings: 4/0 AWG (120mm(2))
- Cable Clearance For 4/0 AWG Cables: 1.10 (27.94 mm)
- Weight Lb (Kg) : 1.30 (0.59)
